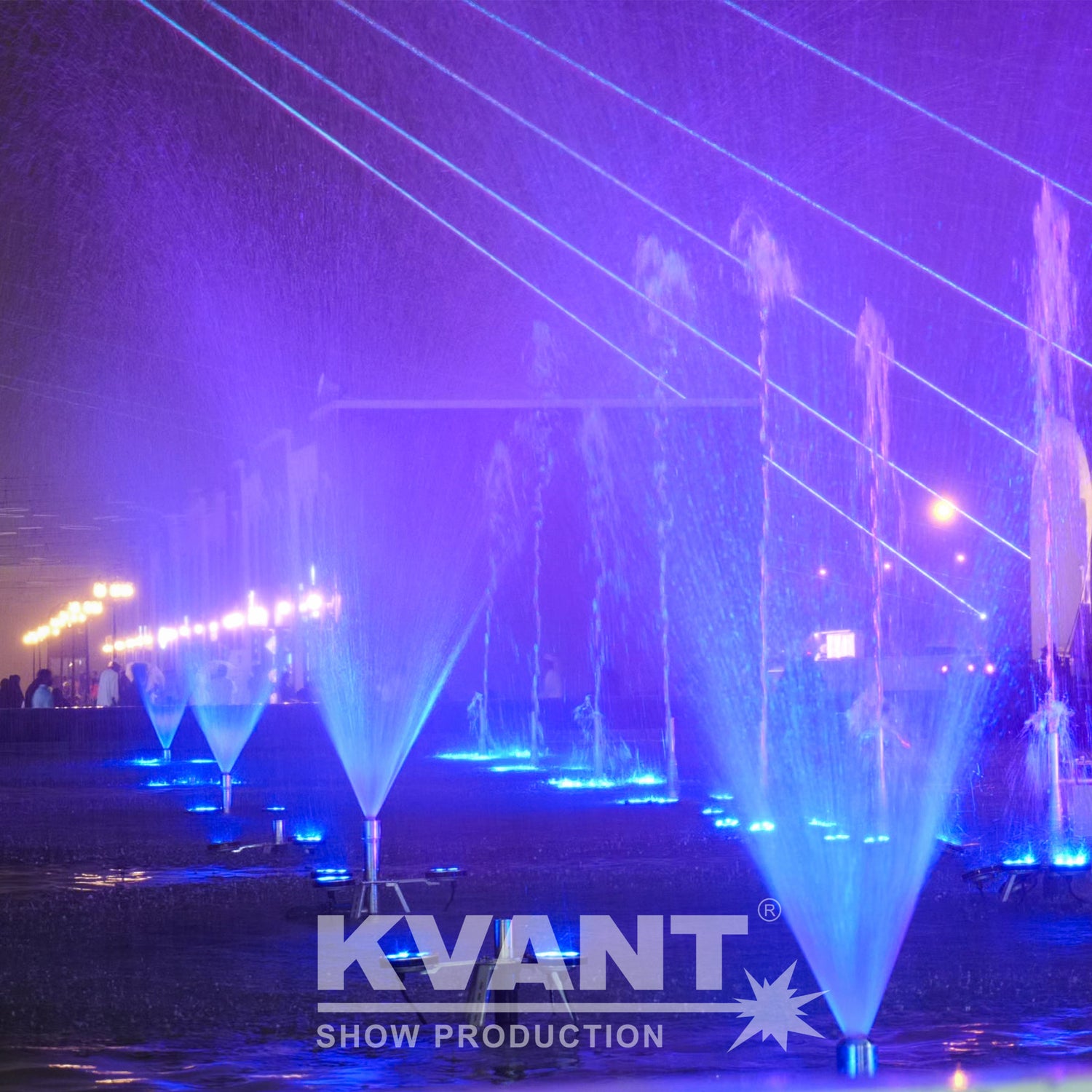

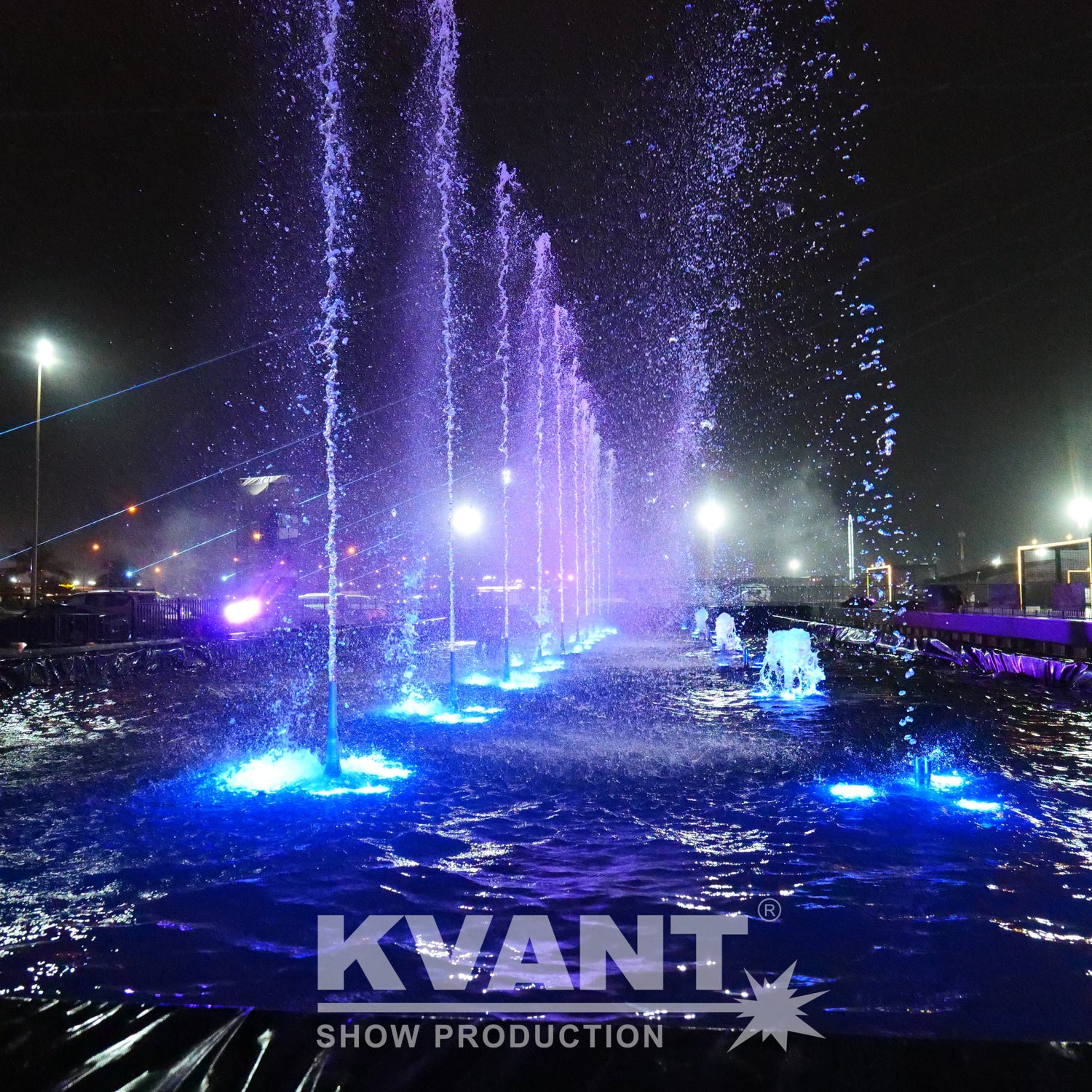

ANIMATION FOUNTAIN

ANIMATION FOUNTAIN



- RGBW lighting

- DMX-RDM controlled

- IP68

- Maximum height of
splashing water: 20 m

- Dimensions for pool:
length 30 m and width 10 m

- Including Aqua SHIELD



Water height information:

Jet nozzle – water height 20 m

Aqua SPIN nozzle – water height up to 5 m

Aqua VARIABLE Jet nozzle – water height up to 5 m

Aqua SHIELD – water width 26 m and height 10 m



Aqua SHIELD information:

The purpose is to create a thin water surface which will be screened for multimedia or laser shows. That’s why is ideal for video and laser projection. Even movies can be shown by this method. The system's 180-degree water range and water film thickness are adjustable. Water range 10 m, max. pressure 7 bar, projection range 180-degree.

Equipment

Pumps

37 kW Sub-Pump for Aqua SHIELD (1 pc)

7,5 kW Sub-Pump for JET nozzle (10 pcs)

3 kW Sub-Pump for Aqua SPIN (3 pcs)

1,1 kW Sub-Pump for Aqua VARIABLE Jet (8 pcs)

Nozzles

Jet nozzle Ø29 mm (8 pcs)

Aqua VARIABLE Jet Nozzle (4 pcs)

Aqua SPIN Ø14 mm (3 pcs)

Lights

Aqua LIGHT RGBW (80 pcs)

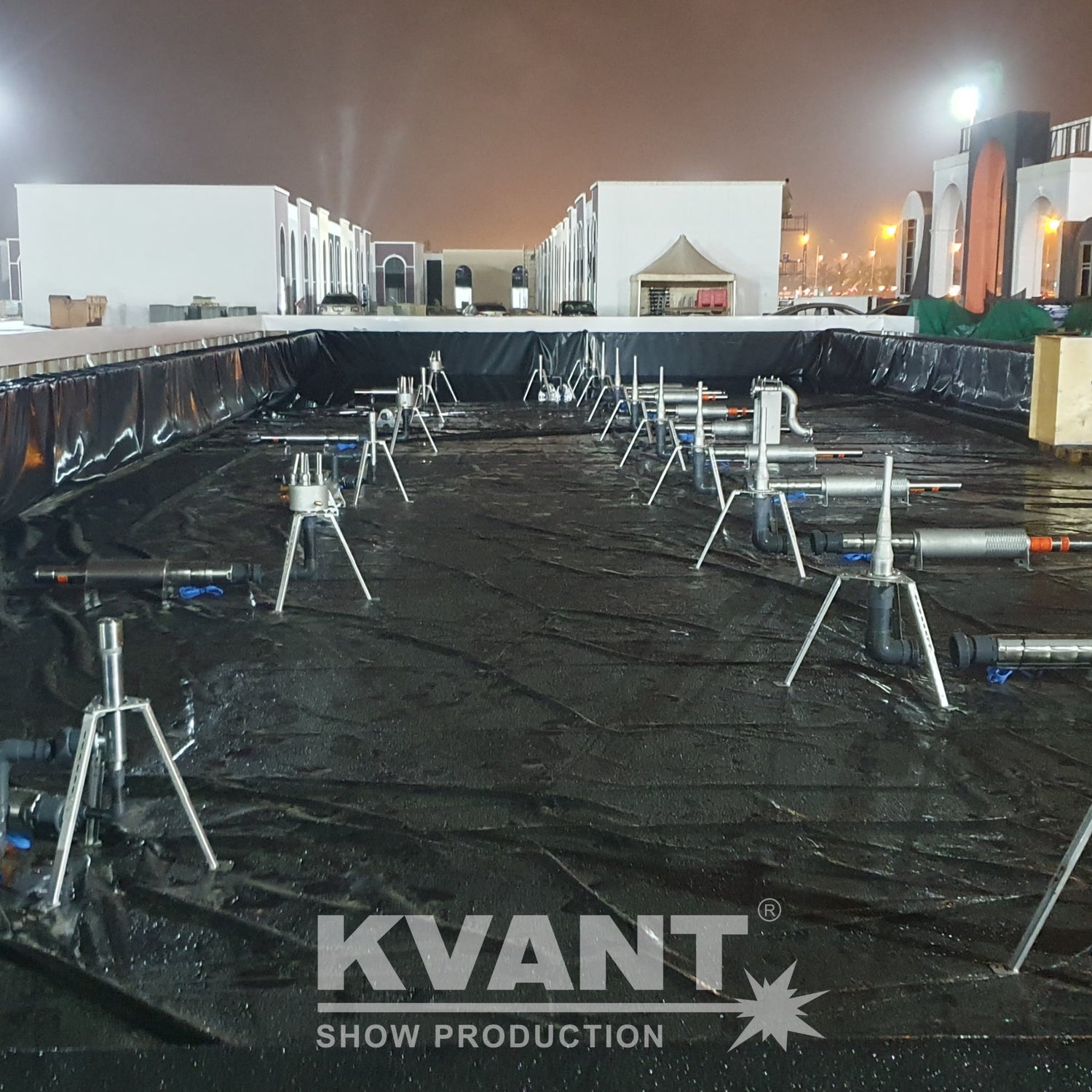

Stands

Stand I, triangle based for Aqua SPIN and Aqua VARIABLE Jet (7 pcs)

Stand I, triangle based for Jet nozzle (10 pcs)

Stand I Leg, based for Jet, Aqua VARIABLE and Aqua SPIN (50 pcs)

Control cabinets

Control Cabinet 1 for Aqua VARIABLE Jet, Aqua SPIN Nozzles and Aqua LIGHT

Control Cabinet 2 for Jet Nozzles

Control Cabinet 3 for Aqua SHIELD
